SPECIFICATIONS

Brand Name: HQCAM

Origin: Mainland China

High Definition: 8.0 Megapixels

Supported Operating Systems: Windows 98

Supported Operating Systems: Windows XP

Supported Operating Systems: Windows vista

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Supported Operating Systems: Windows 2000

Supported Operating Systems: Windows 2008

Supported Operating Systems: Windows 2003

Lens (mm): 3.6mm

Style: Mini Camera

Connectivity: USB

Installation: Embedded

Minimum Illumination(Lux): 0.01

Scene: Indoor

Color Night Vision: no

Megapixels: 8MP

Storage: None

Video Compression Format: MJPEG

IR Distance(m): NA

Certification: RoHS

Dimensions (L x W x D)(mm): 15x15mm

Color: black

Power Mode: Mains Electricity

Movement Range(Tilt): other

is_customized: Yes

Model Number: USB

Supported Mobile Systems: Android

Smart home platform: other

IP Rating: other

Special Features: Vandal-proof

TF Card: None

Digital Zoom: none

Rechargeable Battery Capability: other

Audio Output: 1CH RCA

Sensor: CMOS

Sensor Brand: Sony

Operating Temperature: -10°-60°

Shell Material: Plastic

Power Supply: Normal

Viewing Angle : 90°

Optical Zoom: none

Movement Range(Pan): other

Rechargeable Battery: none

Power Consumption(W): 3.3-5v

Minimum Illumination(Lux): 0.01lux

IR Distance(m): /

Power Supply(V): DC5

Dimensions (L x W x D)(mm): /

item: Super Mini Usb Camera

senor: 1/3"CMOS Progressive Scan 1080P

lux: Color 0.1LuxF1.2 B/W 0.01 LuxF1.2

lens: long focus lens

system: android/windows/Linux etc

for: Color 0.1LuxF1.2 B/W 0.01 LuxF1.2

app: USBCAMERA

support: AUDIO

Resolution: 1080p

Pixel: 2MP 1920*1080P

keyword: USB Android External Camera

SIZE: 15*15 Micro Usb Camera

IMX179: IMX179 4K 8MP USB WEBCAM

3MP 16mm Lens 1080P Full HD USB Camera Module MJPEG 30fps High Speed Mini CCTV Linux UVC Android Webcam Mini Surveillance camera

Note: 1080P with audio,3M usb cable

if you need other connector ,pls kindly contact with us for custom made !

for more products infomation ,pls go to our store page !



if you have other requirement ,welcome contact with us free !

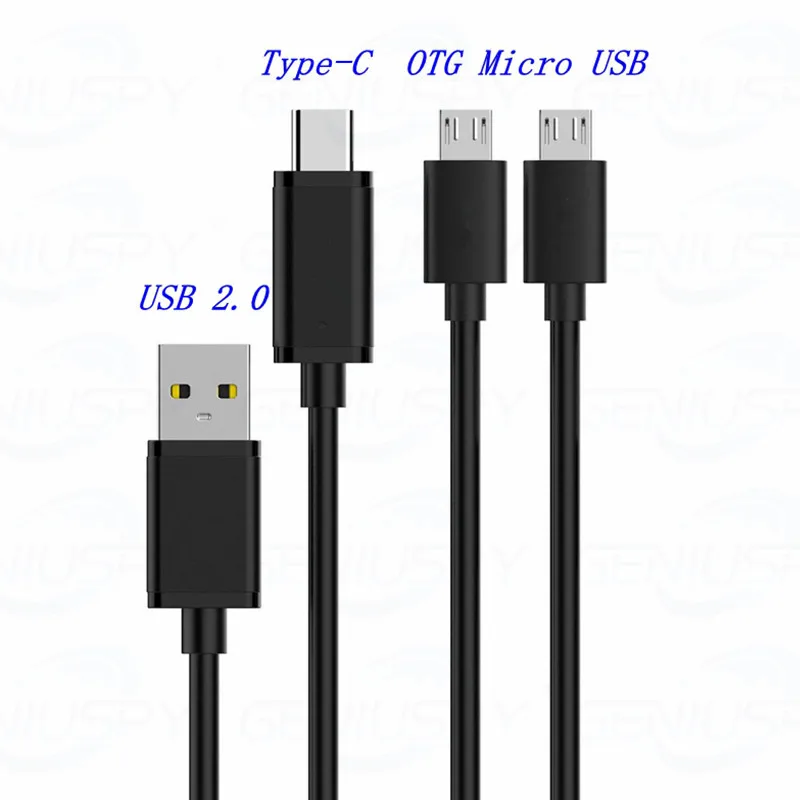

These interfaces are optional, please tell me which one you need:

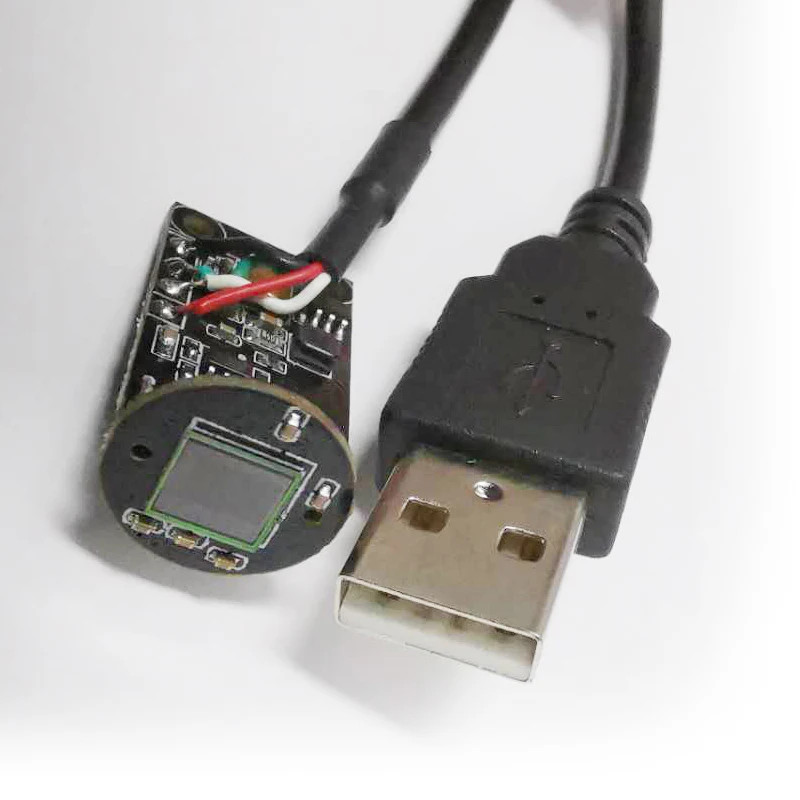

This camera is a 2.0 megapixel size 1920*1080 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

Feature:

HD 1080P USB camera

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

Typical application

1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera

5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner

9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition

12:video door phone                  13:HD surveillance

Remarks:

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Parameter description:

SLens Size:1/2.7 inch

Pixel size: 3um

Maximum effective pixels: 1920 (H) X1080 (V)

Output image format: YUV2 (YUYV) / MJPEG

Frame rate:  640X480 @ 30fps MJPEG,1 280X720 @ 30fps MJPEG, 1920X1080 @ 30fps MJPEG

YUV2 , 640X480 @ 20fps YUV2,1 280X720 @ 5fps YUV2, 1920X1080 @ 5fps YUV2

Signal to noise ratio: 60dB

Dynamic range: 69dB

Sensitivity: 3.3V/lux-sec@550nm

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

Board size: 15X15mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/  Linux with UVC (above linux-2.6.26)/  MAC-OS X 10.4.8 or later

/Wince with UVC/ Android 4 or with above UVC

Real case:

Package contents:

1 x Camera

Notice :Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer 's Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !
